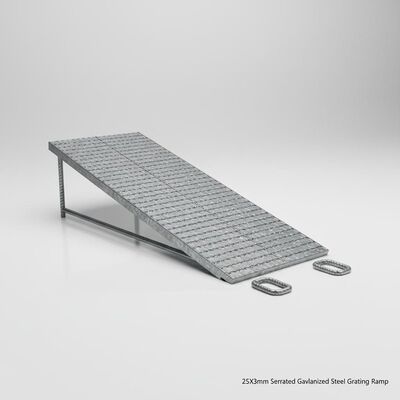

25X3mm Serrated Galvanized Steel Grating Ramp Rebar Removable Steel Grating
Steel grating can be manufactured through manual welding or machine welding processes, arranging bearing bars and cross bars in longitude and latitude order at specific distances. Cross bars are pressed into bearing bars using high-tension resistance welding controlled by molds or computer systems.
Flat steel is typically cold-rolled Q235 flat steel, but can also include hot-rolled I flat steel, tooth flat steel, inclined flat steel, stainless steel flat steel, and other specifications. Bars generally consist of twisted square steel, square steel, round steel, flat steel, etc. Surface treatments include: hot galvanizing, cold galvanizing, spray modeling, painting, and dip anti-rust oil to prevent oxidation and rust (stainless steel typically doesn't require these treatments, with most stainless steel surfaces receiving polishing treatment).
Key Advantages
- Material savings and reduced investment
- Simple construction and installation
- Durable and long-lasting
- Modern, fashionable appearance
- Anti-fouling properties
- Reduced wind resistance
- Simple design principles
- Strong corrosion resistance
Product Specifications
| Specification |
Details |
| Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc;
US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc. |
| Bearing Bar Pitch |
12.5, 15, 20, 25, 30, 32, 35, 38, 40, 60, 80mm etc;
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc;
Note: 19-W-4 is most popular (19/16 inch x 4 inch opening = 30x100mm opening) |
| Twisted Cross Bar Pitch |
50, 60, 76, 100, 120mm etc;
US standard: 2' & 4' etc. |
| Surface Treatment |
Black, self color, hot dip galvanized, painted, spray coating |
| Grating Style |
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar |
Industrial Applications
Water Treatment
Repair walkways, trench cover boards, large containers, cleaning devices, blocking grates, running water tanks, biochemical water treatment pool pendants, ventilation windows, stairs, cooling tower operation table paving surfaces.
Chemical Plants
Stairway boards, operating platforms, guardrails, double floors, trench cover boards, filter grate oil systems.
Industrial Applications
Offshore oil platforms and industrial facilities.
Textile Mills
Replacement for metal grilles, wooden platforms, and cement ground covers; installation near dye tanks, floors, and valve areas.
Power Plants
Chemical water workshop trench cover plates, waste pools, and related applications.
Marine & Food Processing
Slippery surfaces and other harsh environments; shipboard applications.
Transportation
Platforms, ship decks, walkways, and stairs.
Beverage Industry
Staircase floor boards, cost-effective replacement for expensive stainless steel, loaded floor applications.
